Pixel pitch: 1.56mm/1.95mm/2.4mm/2.9mm/3.91mm/5.95mm
X Series Dual-Sided
Indoor LED Display
Double-Sided Content, Double Impact
Ultra-Slim Hanging Design
Crystal-Clear Visual Performance
Reliable 24/7 Operation

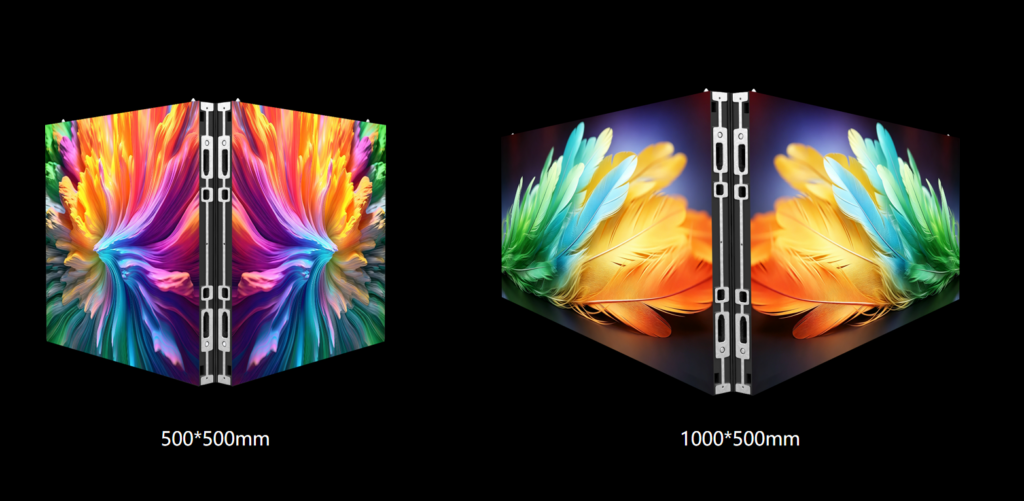

Dual-Sided Independent Display
Dual-Sided Independent Display , Double the Value. Each side plays different content simultaneously. High-brightness and standard-brightness modules are interchangeable — one installation, twice the impact.
—

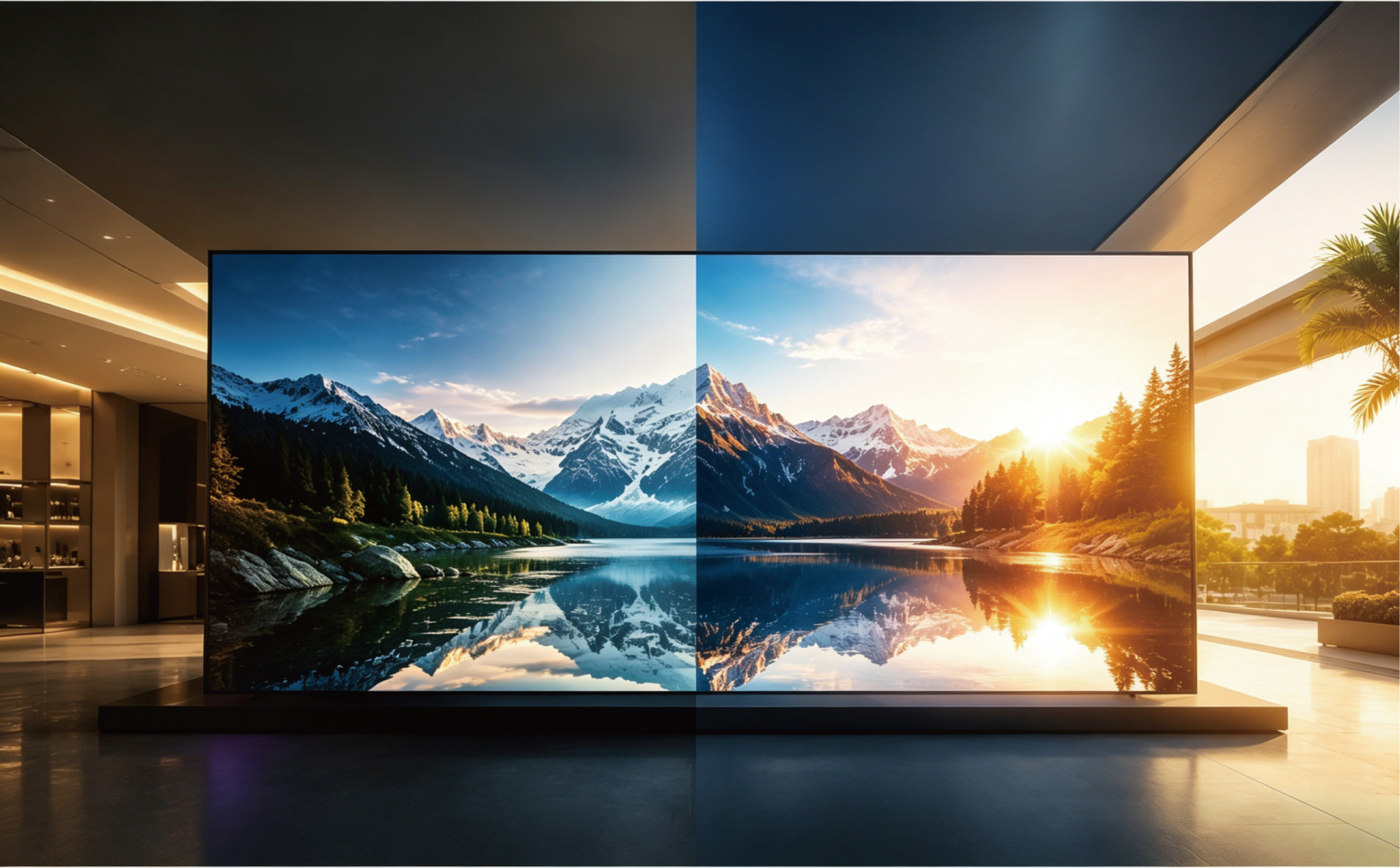

Triple-High Image Quality
Triple-High Image Quality , Clear in Any Lighting. Up to 4,000 nit brightness, 7,680 Hz refresh rate, and 16-bit grayscale — from indoor to semi-outdoor environments.
—

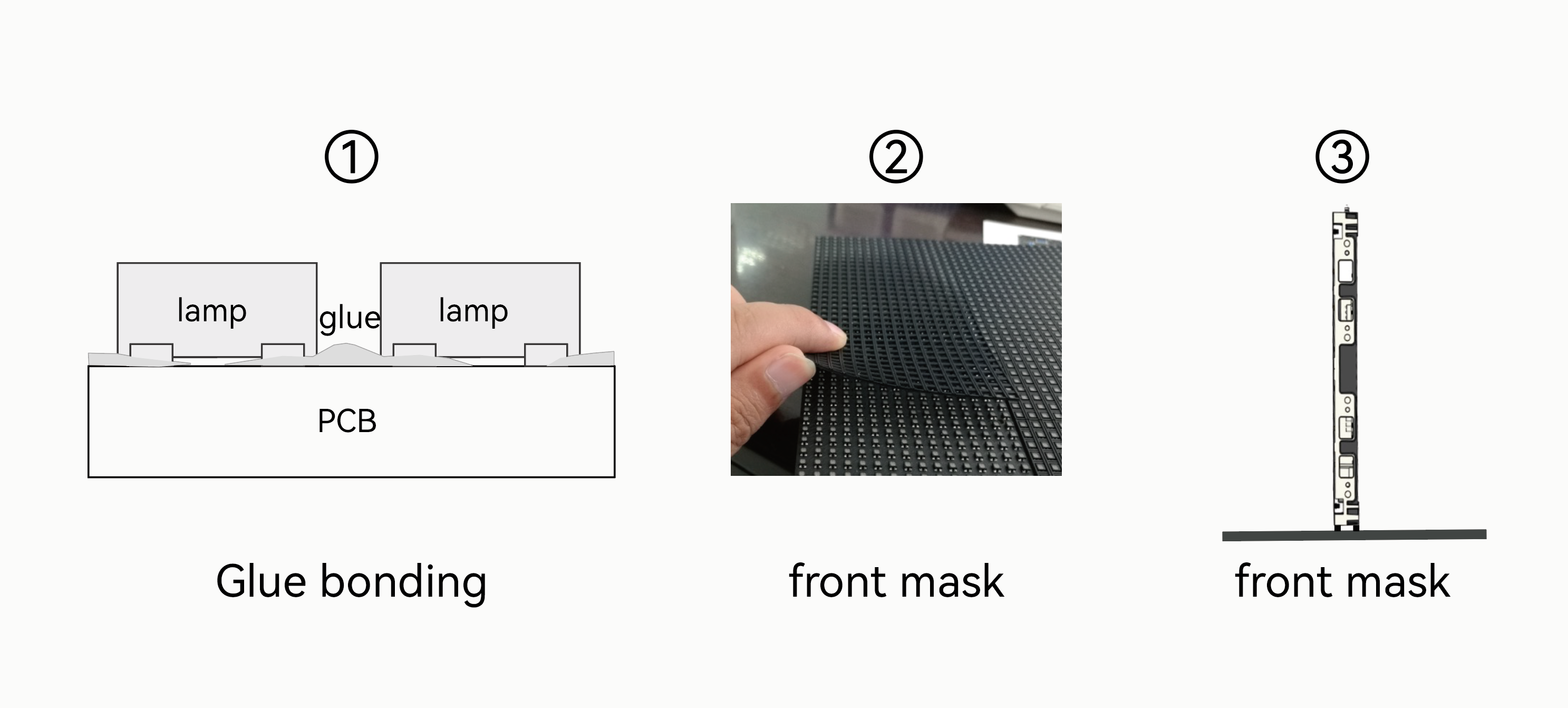

Triple-Layer Protection
—
Triple-Layer Protection , Built to Last.
Glue bonding + front mask + elevated mounting work together to protect LEDs and significantly reduce failure rates.

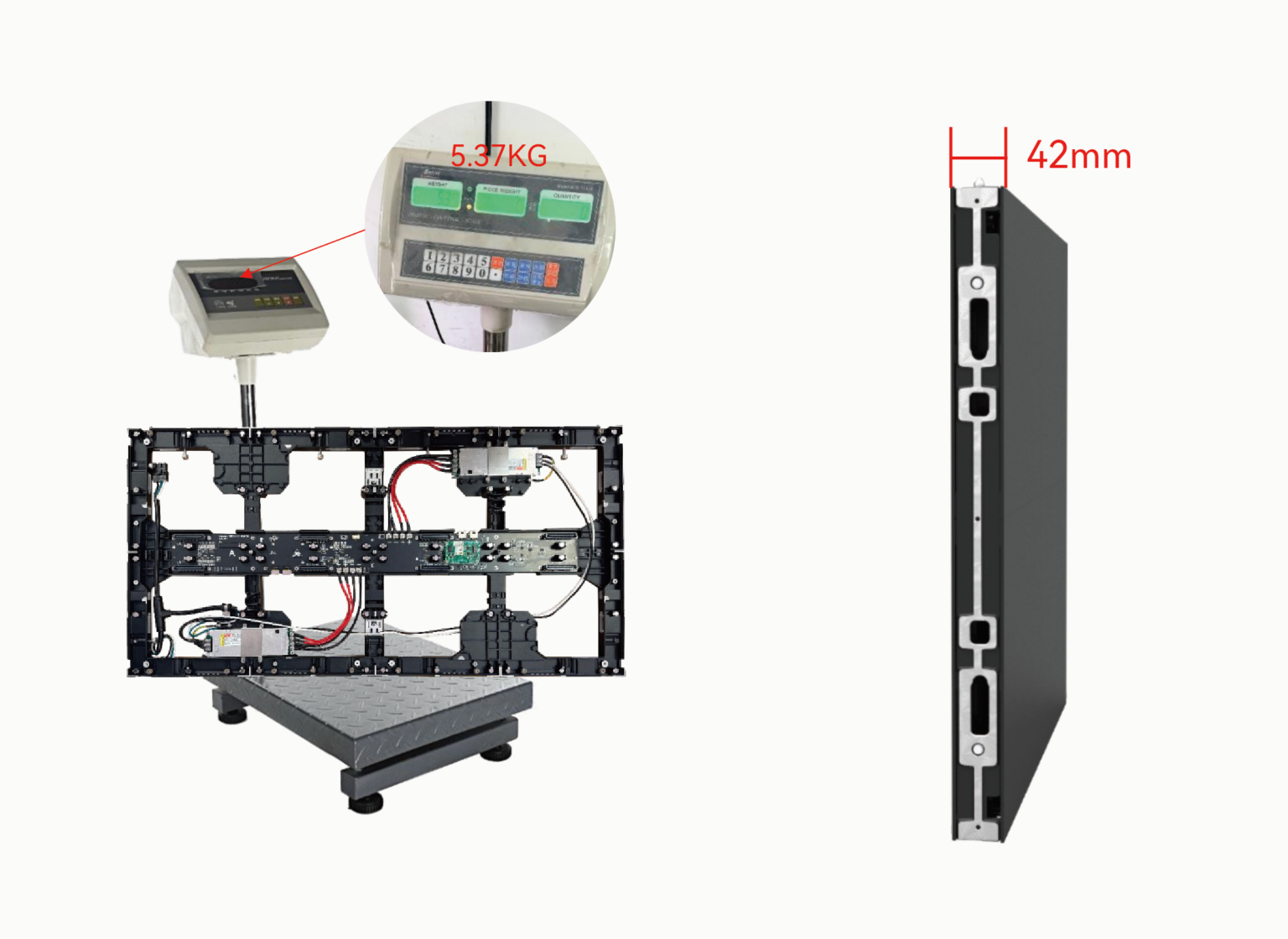

Ultra-Slim & Lightweight
Ultra-Slim & Lightweight, Safe for High-Altitude Hanging.
Die-cast magnesium cabinet: only 42 mm thick, 8 kg per panel. Supports hanging up to 10 m with a safety rope included on every module.
—

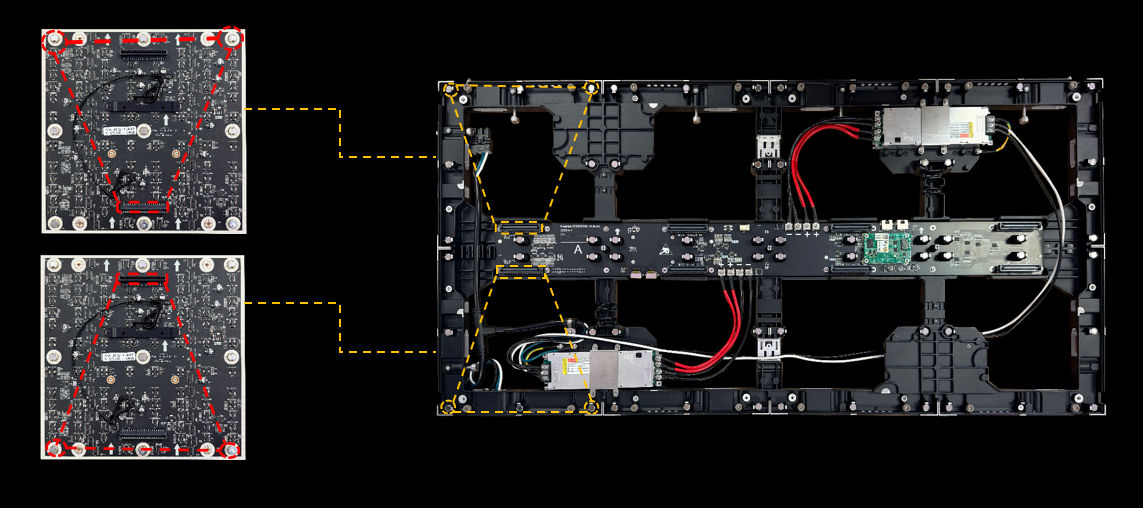

3 in 1 Precision Alignment
—
Three-in-One Precision Alignment , Seamless Flatness.
Triangular positioning + 9 magnets + 52 support points ensure zero-gap, zero-deformation module installation every time.

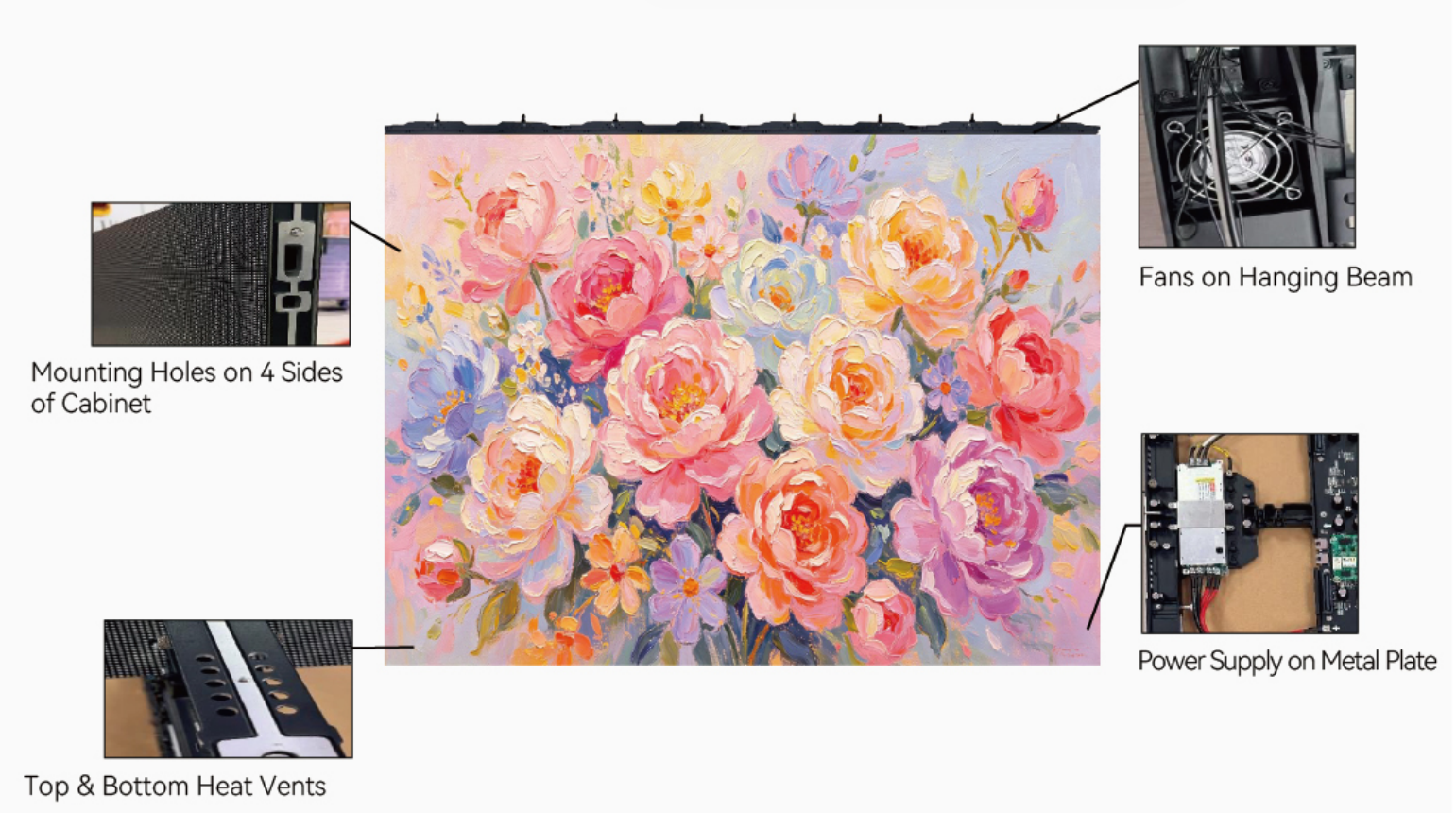

Multi-Dimensional Cooling
Multi-Dimensional Cooling, Stable for Long-Run Operation.
Cooling system: beam-mounted fans + four-sided ventilation + metal-plate heat conduction for PSU + top & bottom heat vents. A four-channel thermal design that prevents heat buildup and ensures consistent brightness during extended operation.
—
Application Fields
Ledman X series LED video panel is widely applied for indoor use for advertising walls at malls, command centers, conferences, and more.
Command Center
Conference
Exhibition
Indoor Advertising
