Pixel pitch: 1.95mm/2.4mm/3.91mm
X Series—— Felxi
Indoor Fixed LED Display
Flexibility
High Protection
Flexible Installation Method
Compatible Platform Design
Excellent Display Performance
Smooth performance in flatness
Superior Display Performance
Brightness ranges from 800 to 1,000 nits with a 7,680 Hz refresh rate and 16-bit grayscale depth — delivering crisp, flicker-free visuals with no scan lines, even on camera.
—

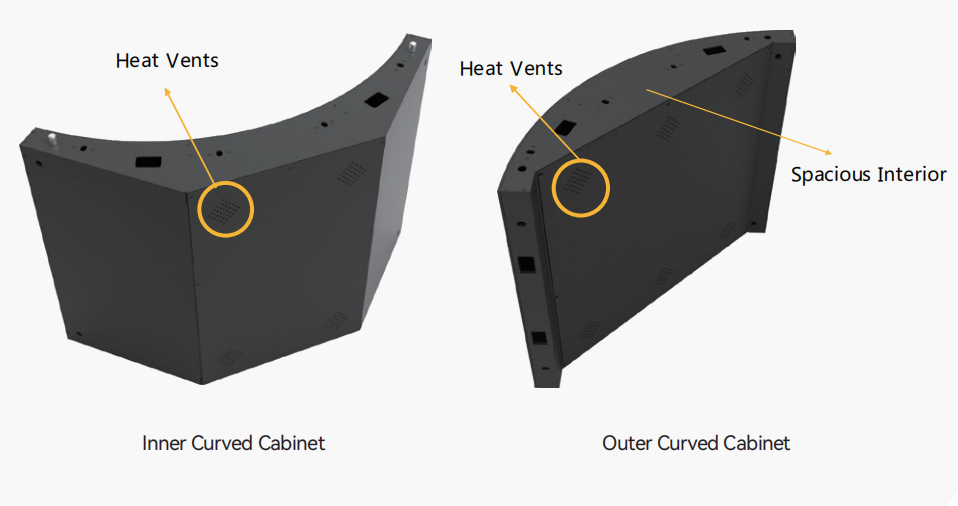

Built to Last
—Rear-panel ventilation holes enable effective heat dissipation for stable long-term operation;
—The spacious interior accelerates the flow of hot air, dissipating heat.
—

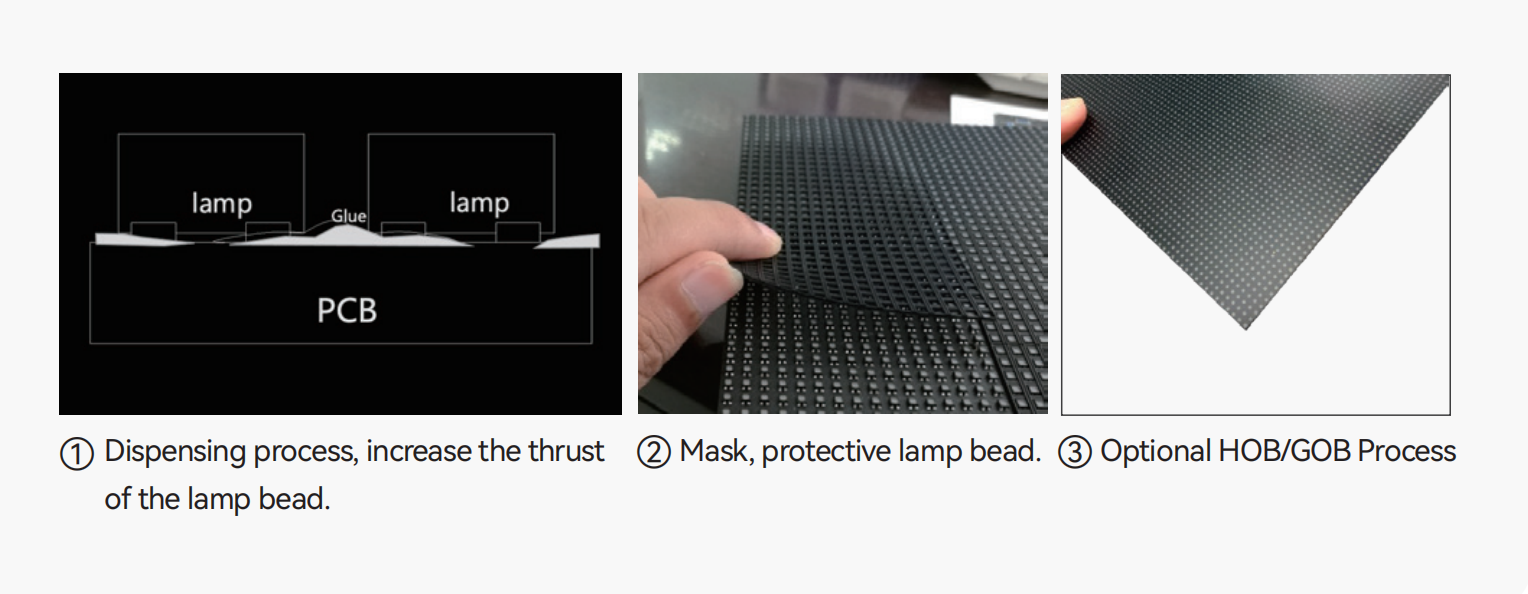

Triple-Layer Protection
—Three lines of defense — HOB/GOB（optional） encapsulation, precision glue dispensing, and a protective face mask — work together to significantly reduce pixel failure;
—Modules are also vacuum-sealed for packaging, minimizing damage during shipping and stora
—

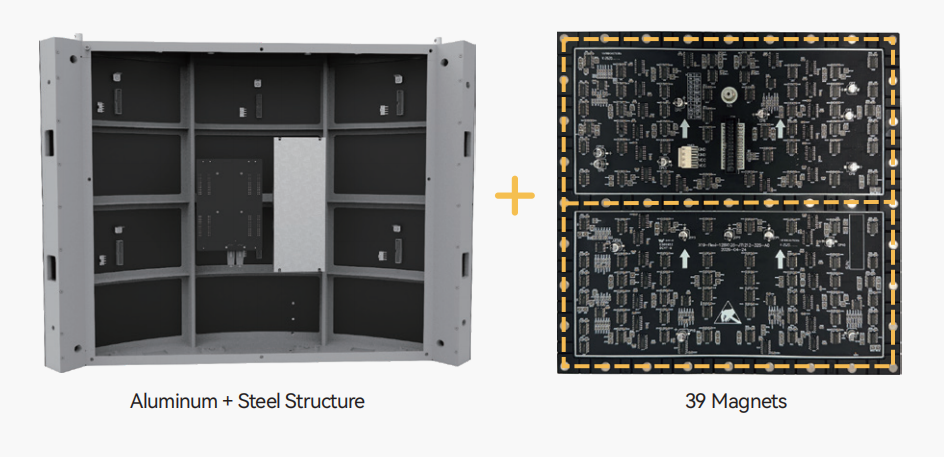

Seamless Flat Splicing
—
- Our proprietary “日”-pattern 39-magnet layout, cabinet reinforced by 4 aluminum columns, ensures a perfectly flat screen surface with zero edge warping.

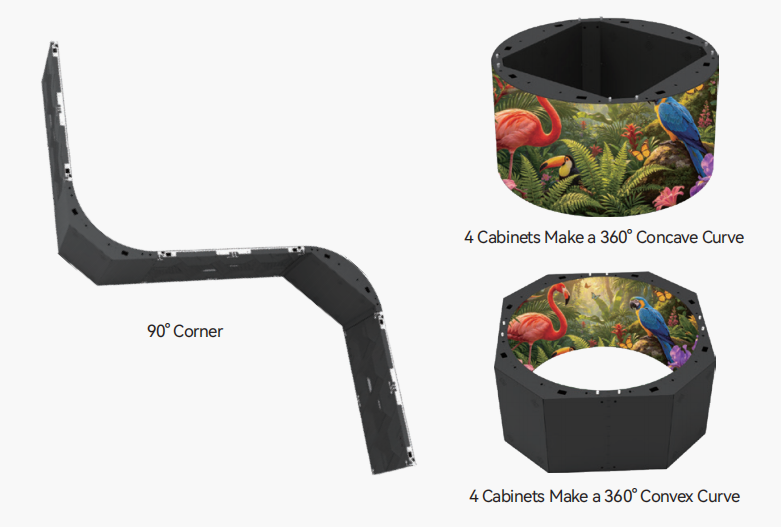

Flexible Installation
—Cabinet supports 90° curved right-angle splicing; a 750mm width (3 modules) can form a curved right-angle structure—meeting special installation needs such as corner and curved screens, with no customized modules required.
—Various installation methods are supported, including floor-standing and bracket-mounted configurations.
—
Easy Maintenance
—
Modules are orientation-agnostic (no A-side/B-side), and modules with different pixel pitches are interchangeable — simplifying inventory management；
Modules, power supplies, and receiver cards all support front-and-rear access for hassle-free maintenance.
Application Fields
Ledman X series LED video panel is widely applied for indoor use for advertising walls at malls, command centers, conferences, and more.
Command Center
Conference
Exhibition
Indoor Advertising
